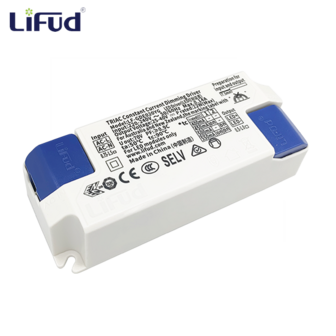

Lifud driver | Constant Current | Compact Dimmable | Triac | 8W, 10W, 12W, 14W | 220-240V | 25-40V
In de bijlage vindt u uitgebreide informatie over deze driver van Lifud.
LED Flatlight: If you compare our LED Products to traditional lighting you will see that our lighting radiates less heat and has a much longer life span and a very low maintenance cost. Our products are made of quality parts and have a high energy saving level. We think quality is very important so we always make sure our products are tested and have the right certificates.
| Type |
US Triac |
| Model |
LF-GDE014YG |
| Max Output |
Options: 8W, 10W, 12W, 14W |
| Dim. Functions |
Triac |
| Input Voltage |
220- 240V |
| Output Voltage |
25V-40V |
| Output Current |
8W: 200mA |
| |
10W: 250mA |
| |
12W: 300mA |
| |
14W: 350mA |
| Efficiency (Typical) |
75% (230Vac) |
| PF (Typical) |
0.90 (230 Vac) |
| Working Temp. |
-30℃~+50℃ |
| Dimensions |
97*46*31 mm |
| Certificates |
ENEC, CB, CE, RCM, CCC |
| Warranty |
5 Years |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
